| Measurement |
| Frequency Resolution | 0.001 HZ @ 6 MHz (1 sampleper second) |
| Sample Rate | 100 Hz - 10 Hz (10 ms - 100 ms) |
| Display Update Rate | 10 Hz - 1 Hz (10 ms - 100 ms) |
| Sensor Crystal Frequency | 6 MHz |
| Communications |
| RS-232 Communication Compatibility | Yes |
| RS-232 Baud Rate | 115200 Baud |
| Communications Protocol | RS-232 standard (See “RS232 Commands” in the Eon-ID manual) |
| Software |
| Thickness | Auto ranging: -999 to 9999.9 k? |
| Rate | Auto ranging -999 to 9999.9 ? |
| Power | 00.00 to 100% |
| Crystal Health | 00 to 100% |
| Number of Processes | 100,000 |
| Number of Layers | 100,000 |
| Manual Power Control | Yes |
| User Labeled Process (full touchscreen with alphanumeric entry) | Yes |
| User Labeled Films (full touchscreen withalphanumeric entry) | Yes |
| Shutter Delay | Yes |
| Software Control Loops | PID |
| Data Logging | Yes |
| User Language | English |
| Electronics |
| Temperature | 2x TC Type K |
| Relay Output Setup | Outputs can be triggered according to user-defined conditions |
| Source Power Supply Signal | 0-5v DC source controls (2) |
| Sensor Head Input(s) | High resolution inputs, accurate up to 0 .001 Hz (2) BNC |
| Thermocouple Input(s) | Type K thermocouple inputs; accurate to +/-0.25°C (2) |
| Display with Graphics | 7” LCD-TFT display graphics; 800 x 480 VGA resolution;resistive touch (touchscreen) |
| DB37??????????????????????????????????????Relays*9 Relays?? | 6 SPST (programmable)?????????? | 2 SPDT (programmable)?????????? | 1 SPST (abort only)???????????????????????????????????????Inputs8 Inputs???? | Passive Type?????????? | Digital?????????? | 5V?????????? ?*Max 2A@30VDC |
| DB9Relays*???2 Relays??? | 2 SPST (programmable)??????????????????????????????????????? ?*Max 2A@30VDC |
| Dimensions |
| Eon-ID? Controller | 10” L X 8.25” W X 5.25” H |
| Rackmount Dimension | Standard 19” 3U high rack; 1 or 2 Eon-IDs per slot |
| ?Power Supply |
| 24 volt power (supplied) |
| Ordering Information |

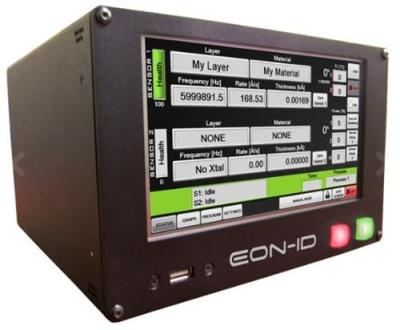

| Eon-ID? | Thin film monitor/controller with integrated touchscreen and temperature measurement |
